Custom 420258 electrode with reliable performance Manufacturers, Exporters

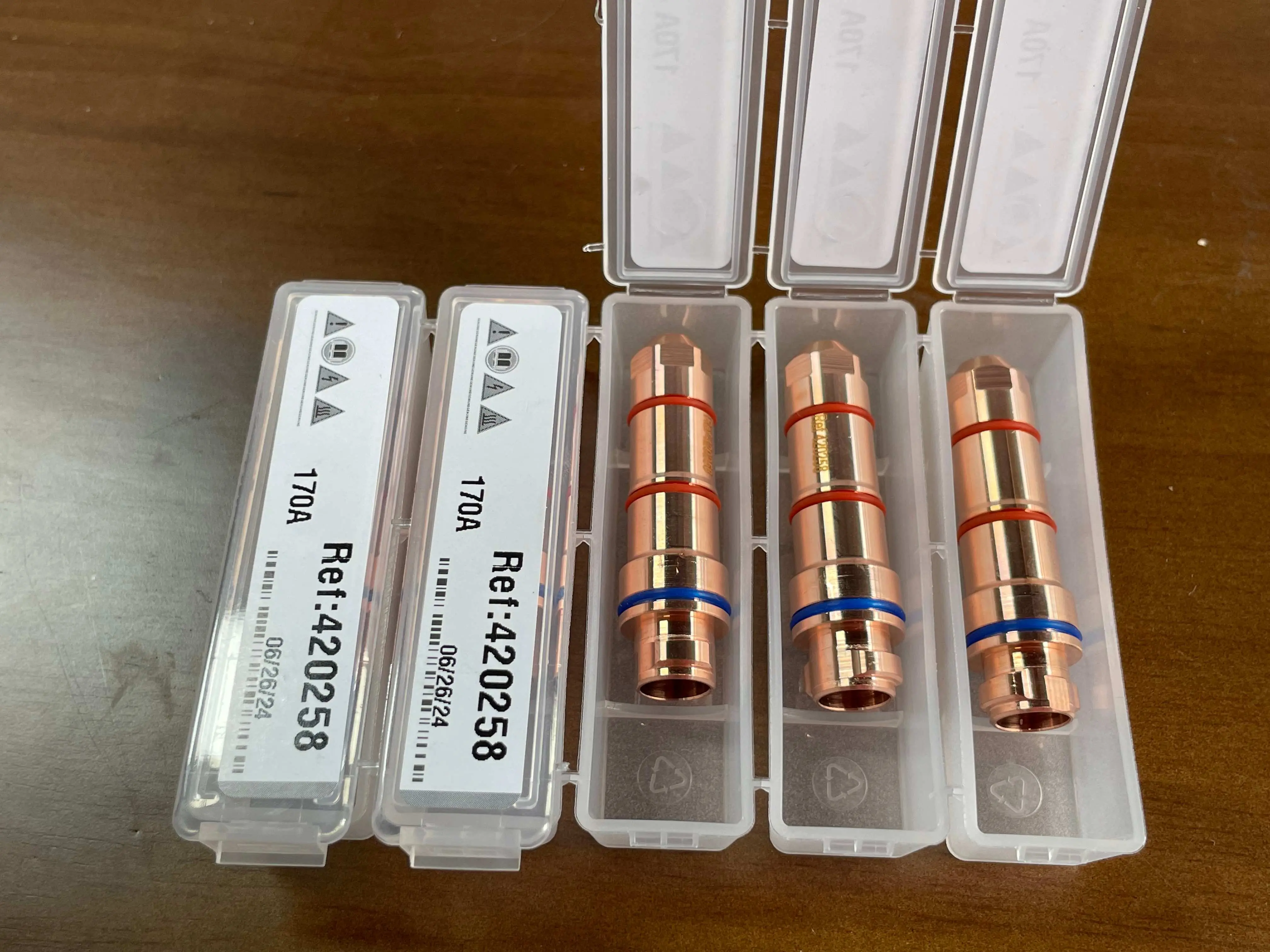

The 420258 electrode is a 170A electrode specifically designed for the XPR series plasma cutting system. It is a crucial and easily damaged component in heavy metal cutting scenarios. The specially designed brazing structure for the 170A heavy-duty cutting condition enables the 420258 electrode to outperform the ordinary pressed structure electrode in terms of thick plate cutting efficiency, service life and cutting stability. It is widely used in steel structure production, shipbuilding, heavy machinery processing, pressure vessel production and other fields.

Send Inquiry

Product Description

Product Overview

The 420258 electrode is a 170A electrode specifically designed for the XPR series plasma cutting system. It is a crucial and easily damaged component in heavy metal cutting scenarios.

The specially designed brazing structure for the 170A heavy-duty cutting condition enables the 420258 electrode to outperform the ordinary pressed structure electrode in terms of thick plate cutting efficiency, service life and cutting stability. It is widely used in steel structure production, shipbuilding, heavy machinery processing, pressure vessel production and other fields.

Technical Specifications

Item	Specification
Model	420258
Structure	Soldering structure
Suit for	XPR series
Rated current	170A
Emitter material	High-purity hafnium wire
Matrix material	Oxygen free copper
Applicable cutting materials	Low-carbon steel, stainless steel, copper, aluminum and other various metals
Average lifespan	600 - 900 arc interruptions (under normal conditions)

Recommended Consumables

To fully utilize the performance of the 420258 electrode, it is recommended to use the corresponding series consumables. This can further increase the overall lifespan by 20%.

● Nozzle

420261 (Special nozzle for 170A)

● Shield

420264 (suitable for 170A working condition)

● Swirl ring

420267 (XPR series universal)

● Retaining cap

420270 (XPR series universal)

Frequently Asked Questions (FAQ)

1. What is the primary function of the 420258 electrode? The 420258 is a 170A electrode designed specifically for high-efficiency heavy metal cutting within XPR series plasma systems.

2. Why choose the brazing structure over standard types? The brazing structure provides superior durability, better cutting stability, and increased efficiency when cutting thick plates compared to standard pressed structures.

3. What materials can be cut using this electrode? It is highly effective for low-carbon steel, stainless steel, copper, aluminum, and various other metal types.

4. How can I maximize the lifespan of the 420258 electrode? Using the full set of recommended consumables (nozzle, shield, swirl ring, and retaining cap) can extend the overall lifespan by approximately 20%.

5. What is the expected lifespan under normal conditions? Under normal operating conditions, the average lifespan of the 420258 electrode is between 600 and 900 arc interruptions.

6. Is this electrode compatible with all XPR series systems? Yes, the 420258 is designed to be compatible with the XPR series plasma cutting systems for 170A operations.
