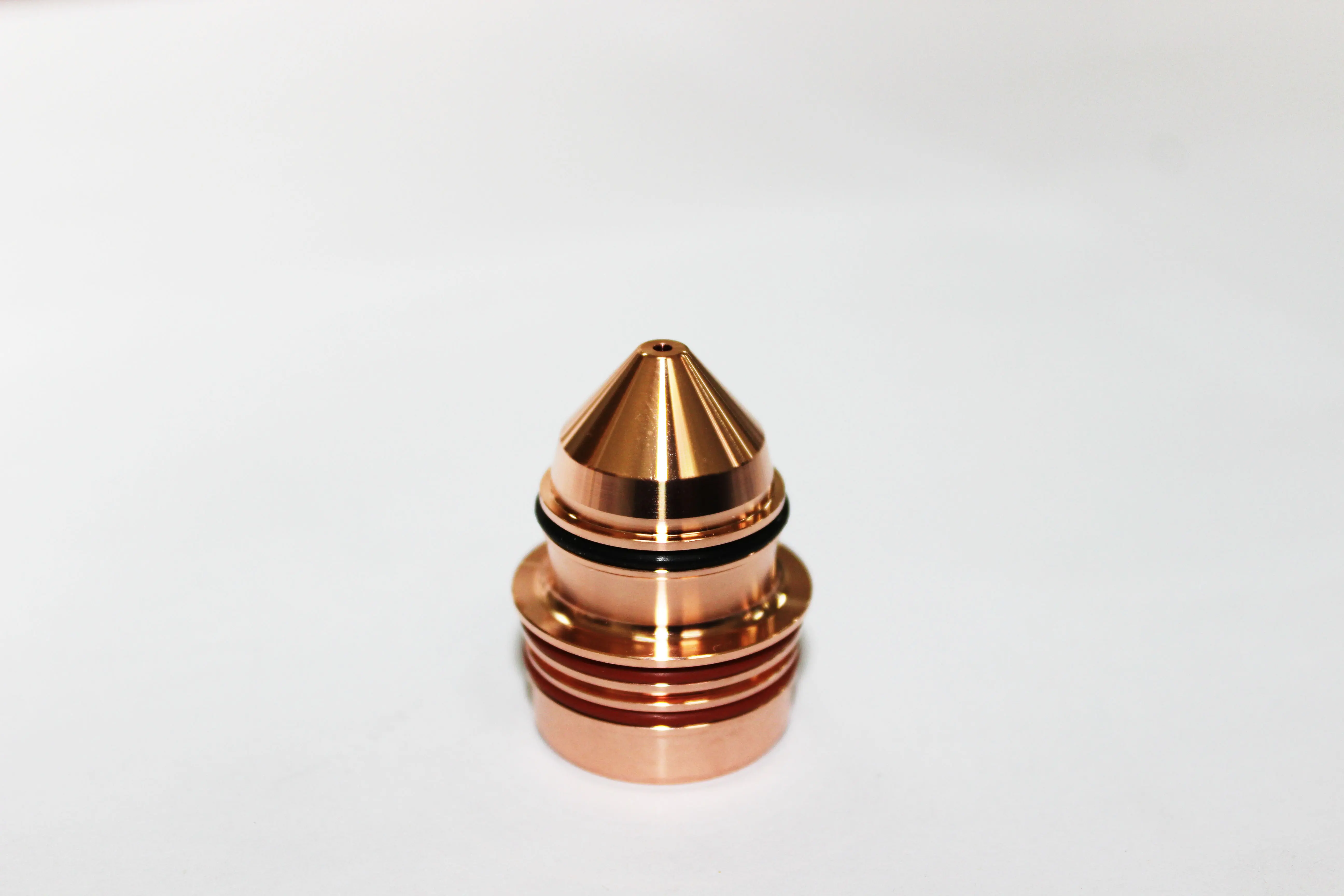

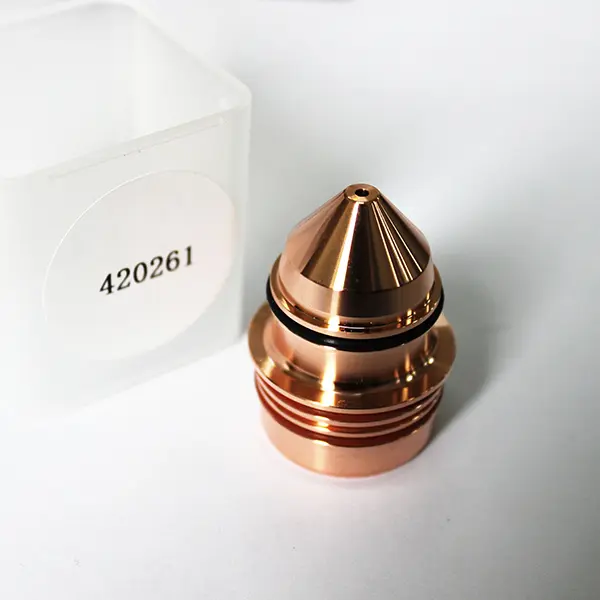

The 420261 is a high-performance plasma cutting nozzle designed for plasma cutting systems. As one of the key consumable parts, it directly influences overall cutting quality and operational efficiency.
Model: 420261
Specifically engineered for compatible plasma cutting torches.
Manufactured from high-purity copper.
The surface can be coated with a specialized layer to enhance wear resistance and sustain high temperatures.
Features an optimized internal configuration with a small orifice.
Designed to focus the plasma arc, ensuring cutting accuracy and process stability.
Combines with the electrode to focus and stabilize the plasma arc.
Controls gas flow to maintain the concentration of high-temperature plasma during cutting operations.
Ionizes gas into plasma through the small nozzle orifice.
Forms a high-temperature, high-speed plasma arc that melts metal to perform clean cuts.
High Precision: Concentrated arc design allows for ultra-fine cuts.
Thermal Resistance: Premium copper handles extreme temperatures, with gas-cooling compatibility for extended life.
Replacement Frequency: Consumable part. Replace when cutting quality degrades or the orifice becomes deformed.
Inspection Method: Regularly check the orifice for deformation, enlargement, or blockages, and inspect the outer surface for damage or ablation.
Operation Parameters: Set proper current, gas pressure, and cutting speed to maximize nozzle longevity.
Storage: Store components in a dry, dust-free environment to prevent moisture contamination.
Potential Causes: Excessively high current settings, incorrect gas pressure, or too slow of a cutting speed.
Solution: Verify and adjust cutting parameters to comply with recommended values in the operating manual.
Potential Causes: Worn nozzle orifice, damaged electrode, or impure/contaminated gas supply.
Solution: Replace both the nozzle and the electrode, and check the quality of your gas supply.
Potential Causes: Gas contains impurities or the cutting process generates excessive slag buildup.
Solution: Use clean, dry gas filters and regularly clean slag and debris from the cutting area.
Electrode: Works in tandem with the electrode to produce and sustain a stable plasma arc.
Shield Caps: Protects the nozzle and electrode from slag splash, extending the lifetime of consumables.
Current Range: Rated for 20A - 45A.
Compatible Gases: Air, Nitrogen, or recommended shielding gases.
Aperture Design: Tailored for specific cutting requirements (refer to specification documentation for exact sizes).
