Shield Cap is an important consumable in the plasma cutting system, mainly used in plasma cutting machines.
The shield cap is one of the important consumables in the plasma cutting system, which is mainly used to protect the nozzle and electrode, while optimizing the cutting quality.
1 Material and Structure
Material
Usually made of copper or copper alloy, the surface may be coated with a special coating to improve wear resistance and high temperature resistance.
Structure
The internal design of the shield cap is precise, used in combination with the nozzle and electrode, and the external shape is suitable to protect the cutting head from splash and debris.
2 Function and Effect
Main Functions
- Protects nozzles and electrodes from metal spatter, slag and debris.
- Optimize gas flow to ensure plasma arc stability and improve cutting quality.
- Extend the service life of nozzles and electrodes.
Working Principle
During the plasma cutting process, the shield cap is covered on the outside of the nozzle to prevent the slag and splash generated during the cutting process from damaging the nozzle and electrode, while helping to guide the airflow and stabilize the plasma arc.
3 Performance Characteristics
- Durability: Made of highly wear-resistant materials, it can withstand the impact of high temperatures and splashing objects.
- Easy to Replace: Simple design, users can quickly replace.
4 Replacement and Maintenance
Replacement Frequency
The shield cap is a consumable, and its service life depends on the frequency of use and cutting conditions. Usually, the shield cap needs to be replaced when there is serious wear or damage to the surface.
Inspection Method
Regularly check whether the surface of the shield cap is cracked, ablated or blocked to ensure that it works normally.
Installation Precautions
- Ensure that the cutting machine power off before replacing the shield cap.
- Clean the shield cap seat to prevent dust or debris from affecting installation.
- Install it correctly according to the operation manual to avoid damaging the shield cap or other components.
Storage Conditions
Store the shield cap in a dry, dust-free environment to avoid moisture or contamination.
5 Common Problems and Solutions
Short Life of Shield Cap
- Possible causes: Improper setting of cutting parameters (such as high current, incorrect gas pressure), excessive slag generated by cutting materials.
- Solution: Check the cutting parameters to make sure they comply with the operating manual.
Reduction of Cutting Quality
- Possible cause: The shield cap is worn, the nozzle or electrode is damaged.
- Solution: Replace the shield cap, nozzle, and electrode.
Shield Cap Plugging
- Possible cause: Too much slag or gas is produced during the cutting process.
- Solution: Clean the shield cap and use pure gas.

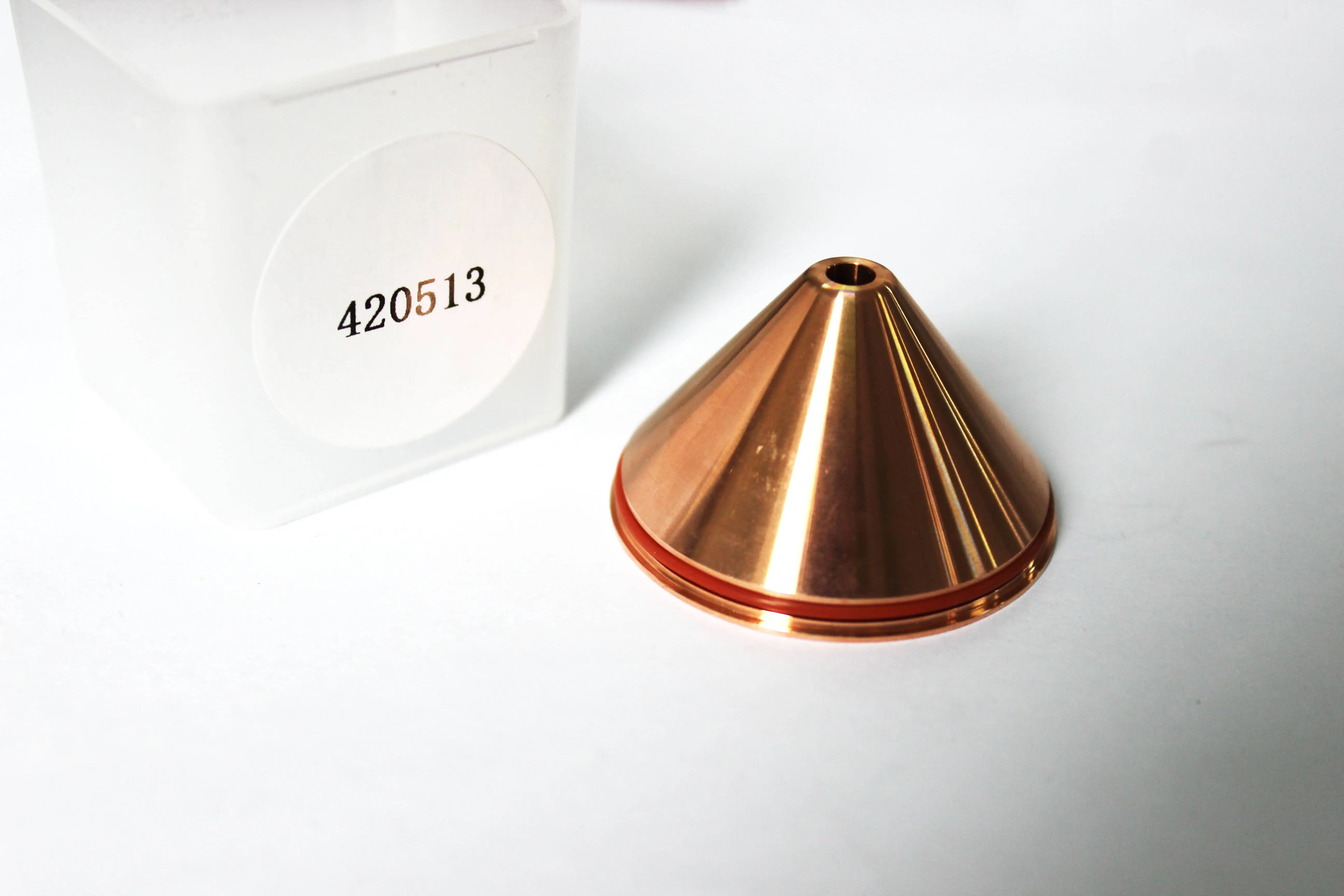

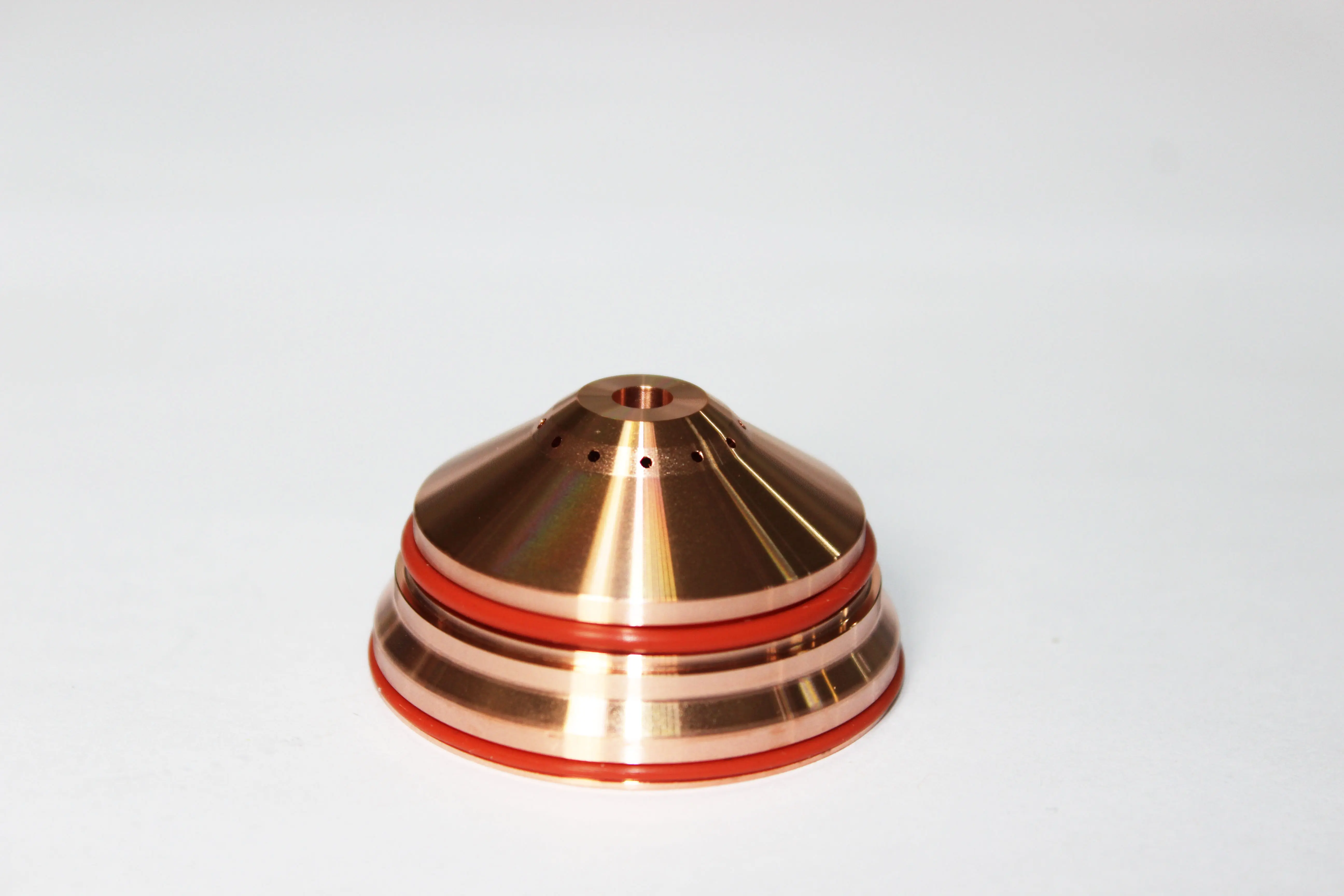

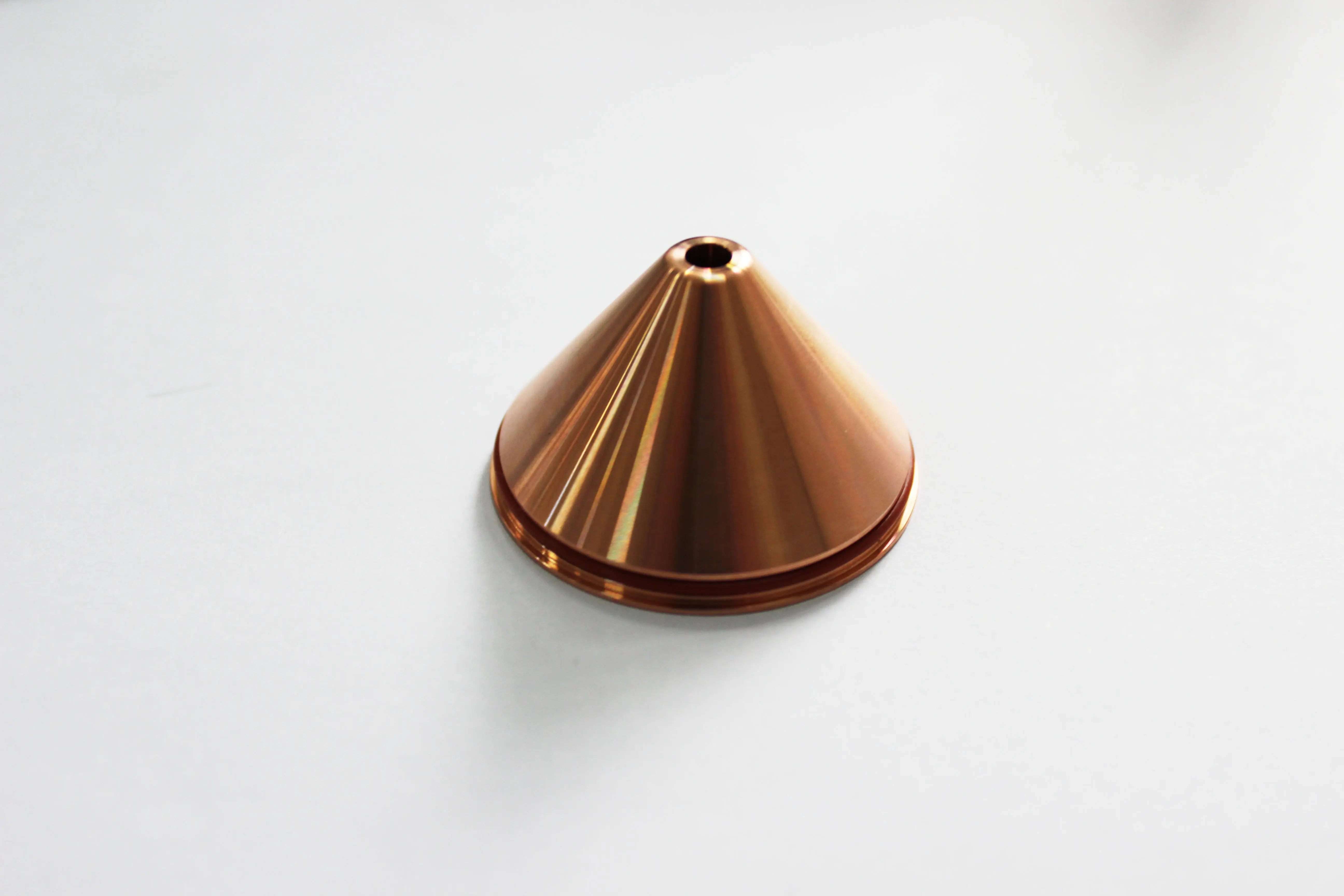

Product Displays
Frequently Asked Questions
Q: What is the primary function of a plasma shield cap?
A: The shield cap primarily protects the nozzle and electrode from metal spatter, slag, and debris. It also helps optimize and stabilize gas flow for a more consistent plasma arc and better cutting quality.
Q: What materials are shield caps typically made of?
A: They are typically constructed from high-quality copper or copper alloy. Some models feature specialized coatings to enhance heat tolerance and wear resistance.
Q: How do I know when the shield cap needs to be replaced?
A: You should inspect the shield cap regularly. It should be replaced immediately if you notice serious wear, cracks, ablation, or blockage on its surface.
Q: What precautions should be taken during installation?
A: Always power off the cutting machine before replacing the shield cap. Clean the seat thoroughly to prevent dust or debris contamination, and follow the operation manual closely to avoid component damage.
Q: What causes the shield cap to wear out too quickly?
A: Premature wear is often caused by incorrect cutting parameters, such as setting the current too high or using incorrect gas pressure. Excessive slag from certain cutting materials can also shorten its lifespan.
Q: What should I do if the shield cap gets plugged?
A: Plugging is usually caused by excessive slag or impure gas during cutting. To resolve this, clean the shield cap and make sure to use high-purity gas.
