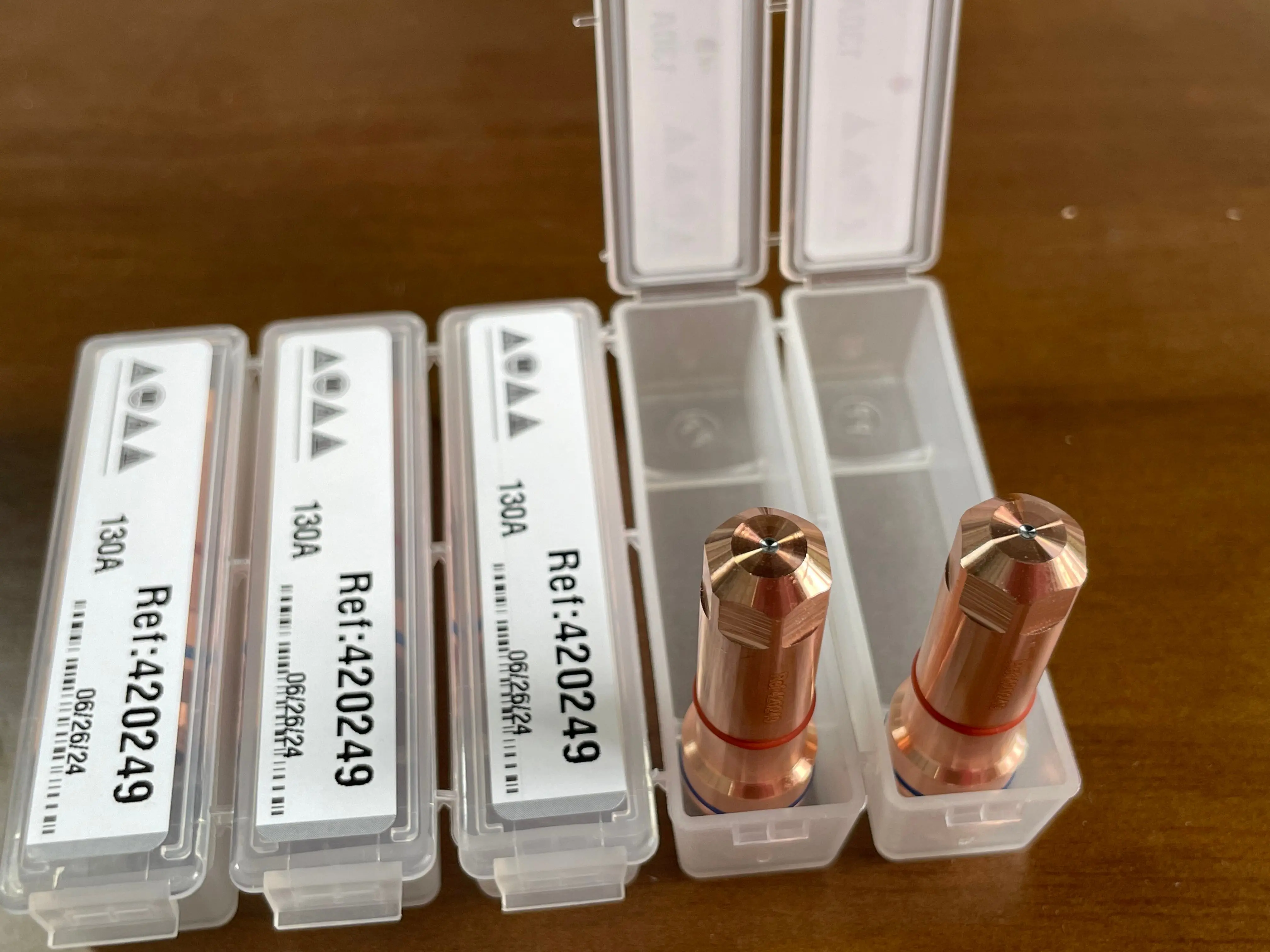

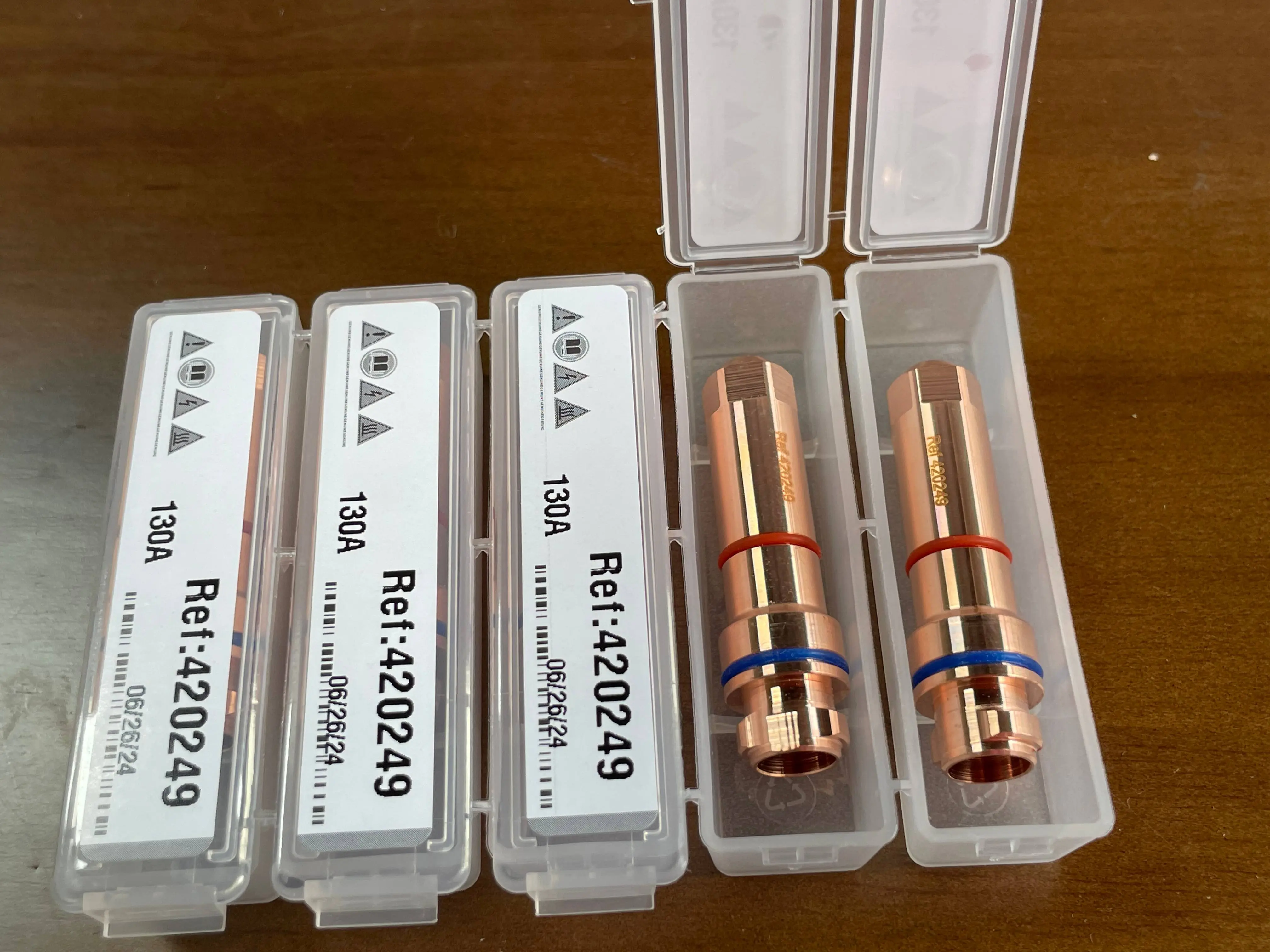

The electrode is crucial because it is responsible for conducting large currents and maintaining the stability of the electric arc. The 420249 plasma cutting electrode uses a 6.0mm silver core. Compared to the conventional specifications, the area of the silver core is larger, and the direct benefits are threefold:
Higher current-carrying capacity: The large-sized silver core of 420249 electrode can handle a higher density of current, ensuring stable output under 130A conditions;
Better heat dissipation: Silver is one of the metals with the best known electrical and thermal conductivity, and the super-large silver core can quickly conduct away heat, preventing local overheating;
Lower energy loss: Under 130A high current, the large cross-section silver core can effectively reduce voltage drop and energy loss, allowing more energy to be applied to cutting.
This design concept essentially aims to optimize for long-term, high-intensity continuous cutting operations. For factories that need to cut a large number of thick plates every day, the stability and durability of the electrode directly determine production efficiency.
130A heavy-load performance
The rated current of 420249 electrode is 130A, which belongs to a medium-to-high current level and is mainly used in industrial-level cutting scenarios. The core performance of the 420249 electrode parameters include:
| Performance indicators | Specific parameters |
| Model Number | 420249 |
| Core Material | Silver |
| Adaptive System | XPR plasma cutting system |
| Rated Current | 130A |
| Emitter Material | High Quality Hafnium |
| Matrix Material | Oxygen Free Copper |
| Applicable Material | Low-carbon steel, stainless steel, aluminum materials |
| Max Cutting Thickness | 50mm |
The hafnium anode is another crucial component of the plasma cutting electrode. The 420249 electrode uses high-quality hafnium as the anode material. Under high current conditions, it can maintain a stable arc shape, ensuring a smooth cut surface and less slag hanging. Combined with the heat dissipation advantage of the 6.0mm silver core, the temperature rise of the electrode during continuous operation is significantly reduced - the data shows that the working temperature can be lowered by approximately 25%, which largely delays the occurrence of thermal cracks and premature failure.
Heat Management and Electrode Lifespan
Many operators have such experience: once the electrode reaches its lifespan, the cutting quality drops sharply. Frequent replacements not only increase the cost of consumables but also slow down the production rhythm.
The 420249 electrode has made targeted optimizations in heat management:
Silver core rapid heat dissipation: The heat generated by the arc is quickly removed from the emission end, protecting the hafnium emitter from being burned out by high temperatures;
Oxygen-free copper substrate combined with thick silver coating: The base material itself has good thermal conductivity, and the silver layer further reduces contact resistance and reduces heat sources;
Anti-thermal cracking design: The material combination and precise processing make the electrode less likely to produce micro-cracks during thermal cycling, thereby extending the effective service life.
Why choose our 420249 silver electrode?
Overall, the core competitiveness of this plasma cutting electrode lies in three aspects:
First, it has a long lifespan and requires less electrode replacement. A 40% increase in lifespan means that the usage period of a single purchase is longer, reducing the frequency of downtime and replacement, which is particularly important for continuous production lines.
Second, the cutting quality is stable. From the first cut to the end of the electrode's lifespan, the arc remains stable, and the roughness of the cut surface changes little, reducing the need for subsequent grinding processes.
Third, the overall cost is more advantageous. Although the silver electrode is more expensive per unit than the ordinary electrode, considering the longer lifespan and better cutting quality resulting in a reduction in post-processing costs, the overall cutting cost is actually lower.
Frequently Asked Questions (FAQ)
1. Why is the 420249 electrode preferred for heavy-duty cutting?
The 420249 electrode features a 6.0mm silver core and high-quality hafnium emitter, providing superior current-carrying capacity (130A) and efficient heat dissipation for consistent performance in high-intensity industrial operations.
2. Which plasma systems are compatible with the 420249 electrode?
The 420249 electrode is specifically designed to be compatible with XPR series plasma cutting systems, ensuring seamless integration and optimal cutting results.
3. How does the 6.0mm silver core improve electrode lifespan?
Silver offers excellent thermal conductivity. By quickly dissipating heat generated at the arc point, the 6.0mm core prevents the hafnium emitter from overheating, thereby significantly extending the service life of the electrode compared to standard cores.
4. What materials can I cut with this electrode?
The 420249 electrode is highly versatile and effective for cutting various conductive metals, including low-carbon steel, stainless steel, and aluminum materials up to 50mm thick.
5. Will using this electrode reduce my production costs?
Yes. While the unit cost may be higher than lower-quality alternatives, the increased lifespan (approximately 40% longer) and improved cutting consistency reduce downtime and the need for post-cut grinding, resulting in a lower total cost of operation.
